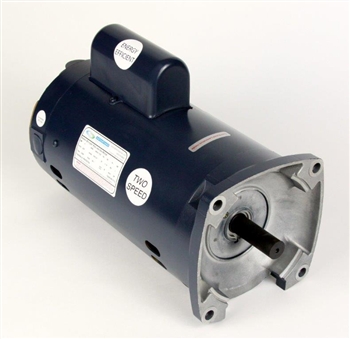

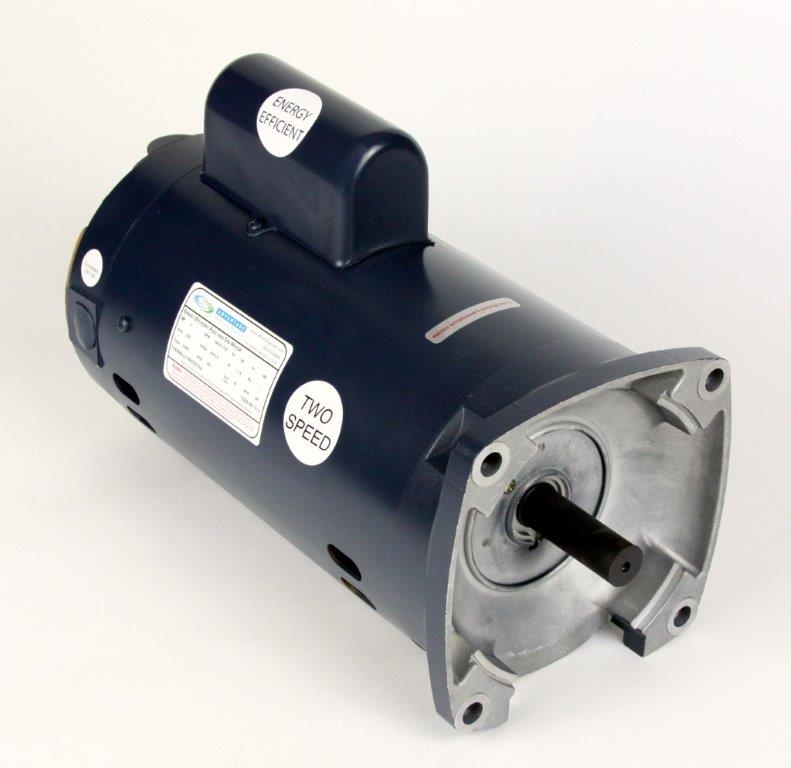

Brand New 2 Speed 56Y Square Flange Pool Motor

This 2 Speed 56 Y Frame Pool Motor is 100% Brand New and comes with a unique toggle switch design allowing for easy operation. High-quality, super efficient replacement motor comes with a one year warranty.

2 Speed 56Y Square Flange Pool Motor Features

• Corrosion-resistant outer shell
• Square flange design
• Easy wiring access

Technical Specs

• 230-Volts, 60hz, 9 /3.3 amps
• Auto protector
• All copper windings
• NEMA 56C Flange mount
• Not reversible Open drip proof CCWPE rotation
• Sealed ball bearings
• Sealed switch 50 degrees C ambient
• 303 stainless shaft
• High service factor capacitor start

Compatible With

Hayward Super, Super II, and Max-Flow pumps, Jacuzzi Magnum pumps, and Pentair Pinnacle pumps

Cross References: C48A46A04 C48L2N125 C48L2N125A1 C48L2N130 C48L2N132 C56M2N113 C56M2N113A1 C56M2N114 K48M2N117A2 K48M2N118 K48M2N118A1 K48M2N118A2 K48M2N119A2 K48M2N121 177107 177108 190066 190147 B940 B957 B977 EB977 JH15FL2 15940 17858 C1112 C502 SP1610Z2BS4 SP1610Z2M SP1610Z2M1 SP1610Z2MBK 91737
